  2. Bizhub 367/287/227

Office Monochrome MFD

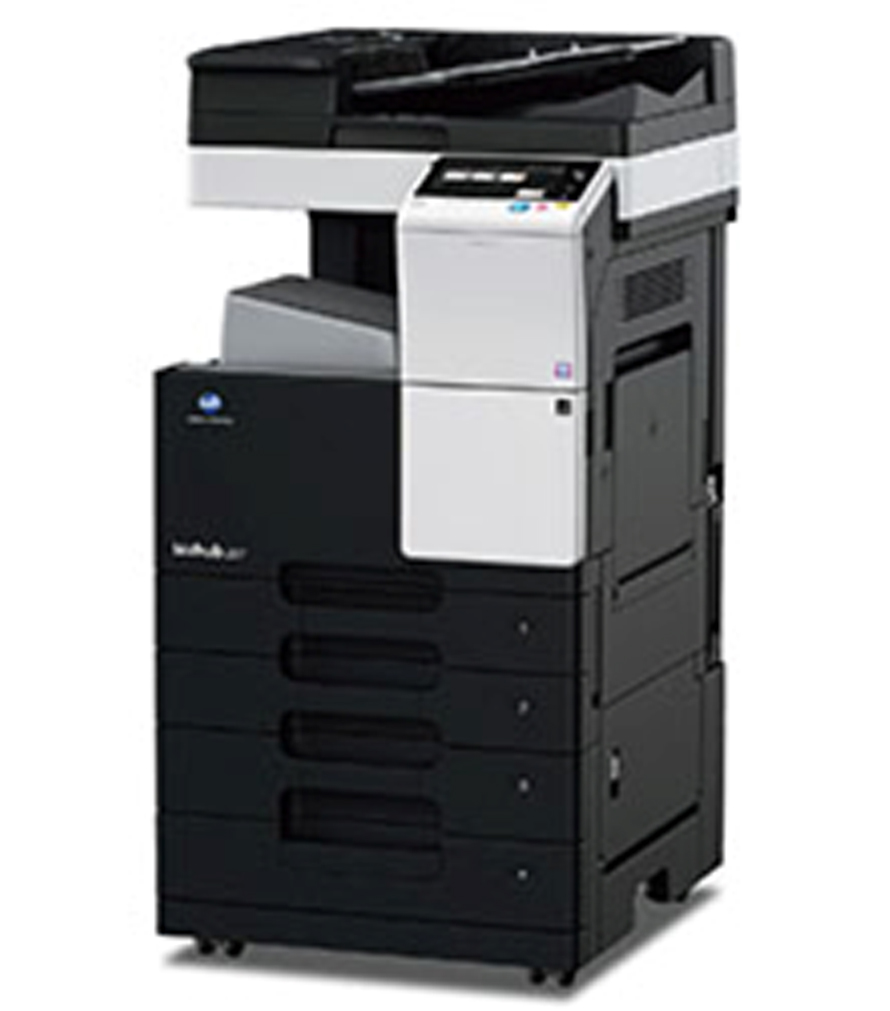

Konica Minolta Bizhub 367/287/227

System Specifications

Printer Specifications
bizhub 367 bizhub 287 bizhub 227
CPU ARM Cortex-A7 Dual-core 1.2GHz
Print Speedy 36 ppm 28 ppm 22 ppm
HDD 250 GB (optional, shared witd the copier)
Print Resolution 1,800 dpi (equivalent) × 600 dpi
PDL PCL 6, PostScript 3 Emulation, XPS
Protocol TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk
Support OS Windows Vista*1 / 7*1 / 8*1 / 8.1*1 / 10*1 Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2 Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11) Linux
Protocol TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, IEEE 802.11 b/g/n*2

Supports the 32-bit (x86) or 64-bit (x64) environment.
Optional
Scanner Specifications
Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), IEEE 802.11 b/g/n*1
Driver TWAIN Driver, HDD TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6)
Scanning Speed (Colour/B&W) (300 dpi, A4, Simplex) 45 opm*2
Scanning Size Max. A3 (11″× 17″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1), Searchable PDF*1, PDF/A*1, Linearised PDF*1
Scanning Resolution Push 200 dpi / 300 dpi / 400 dpi / 600 dpi
Pull 100 dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi
Scanning Size Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to USB, Scan to Scan Server,
Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS)
Other Functions Multi-Method Send, Authentication at the time of E-Mail send (SMTP authentication, POP before SMTP), S/MIME, Annotation

Optional
When using the Reverse Automatic Document Feeder DF 628.
Copier / General Specifications
bizhub 367 bizhub 287 bizhub 227
Type Desktop Monochrome A3 Multifunctional Printer
Copy Resolution Main: 600 dpi × Sub: 600 dpi
Gradation 256
Memory Capacity (Std./Max.) 2 GB
HDD 250 GB (optional)
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″× 17″)
Output Size Main unit: A3 to A5, 11″× 17″ to 8-1/2″× 11″, 5-1/2″× 8-1/2″, 8″× 13″*1, 16K, 8K Bypass Tray: A3 to A5, B6*2, A6*2, 11″× 17″ to 5-1/2″× 8-1/2″, 8″× 13″*2, 16K, 8K, Postcard (A6 (4″× 6″ Card)), Envelope*3, Label sheet, Tab paper
Warm-Up Time*4 (23°C, std. voltage) * the time required to start printing when both the main power and sub-power switches are turned from OFF to ON. 20 sec. or less
* the time required to start printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. 15 sec. or less
Copy Out Time*5 4.5 sec. or less 5.3 sec. or less -
Copy Magnification Fixed Same Magnification 1: 1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25 to 400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25 to 400% (in 0.1% increments)
Paper Capacity(80 g/m2) Tray 1 500 sheets (up to B4)
Tray 2 500 sheets (up to A3)
Multiple Bypass Tray 100 sheets (up to A3)
Max. Paper Capacity (80 g/m2)*6 3,600 sheets
Paper Weight Tray 1 / 2 60 to 220 g/m2
Multiple Bypass Tray 60 to 220 g/m2
Multiple Copy 1 to 9,999 sheets
Auto Duplex Paper Size A3 to A5*2, B5*7, 11″× 17″*2 to 5-1/2″× 8-1/2″*2, 7-1/4″× 10-1/2″, 8″× 13″*2, 16K, 8K*2
Paper Weight 60 to 209 g/m2
Power Requirements AC230 V 7 A (50 to 60 Hz)
Max. Power Consumption 1.5 kW or less
Dimensions [W] × [D] × [H] 585 × 660 × 735 mm (23-1/16″× 26″× 28-15/16″)
Weight Approx. 56.5 kg (124-1/2 lb)
Space Requirements [W] × [D]*8 899 × 1,172 mm (35-1/2″× 46-1/4″)

There are six types of foolscap: 8-1/2″× 13-1/2″*2, 220 mm × 330 mm*2, 8-1/2″× 13″*2, 8-1/4″× 13″*2, 8-1/8″× 13-1/4″*2, and 8″× 13″*2.Anyone of these sizes is selectable. For details, contact your service representative.
Short edge feed
Wrinkles or printing errors may occur due to the type, storage or environment that exists when envelope printing is carried out.
May vary depending on the operating environment and usage.
A4 long-edge feed full size/using the first tray/scanning from the original glass surface.
With options installed.
Long edge feed
Without options, with paper trays pulled out and multiple bypass tray opened.
Internet Fax
Protocol TX: SMTP, RX: POP3, TCP/IP Simple mode
Connection Mode Full-Mode
Sending Paper Size A3, B4, A4
Recording Paper Size Max. A3
Resolution B/W: 200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi Colour: 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Colour Support Colour Internet Fax
Format B/W: TIFF-F Colour: TIFF (Conforms to RFC3949 Profile-C)

Fax Kit FK-513 (Optional)*Optional HDD will be needed if MFP does not equip the HDD as standard.
Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line
Line Density Ultra Fine: 600 dpi 600 dpi Super Fine: 16 dot/mm 15.4 line/mm, 400 dpi 400 dpi Fine: 8 dot/mm 7.7 line/mm, 200 dpi 200 dpi Normal: 8 dot/mm 3.85 line/mm
Modem Speed 2.4 to 33.6 kbps
Compression MH/MR/MMR/JBIG
Sending Paper Size Max. A3 (Long Length Support: Max.1,000 mm)
Recording Paper Size Max. A3 (Long Length Max. 1,000 mm — following the page division —)
Transmission Speed Less than 2 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared witd the copier
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 600

Internet Fax (Optional)* Optional Fax Kit FK-513 is required
Protocol Transmission TCP/IP, SMTP
Sending Paper Size A3, B4, A4
Resolution 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Format B/W: TIFF-F, TIFF-S Colour: TIFF, PDF
